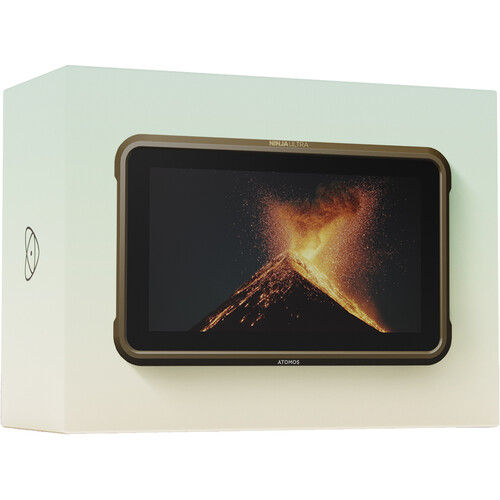

Atomos Ninja Ultra ATOMNJAU01 5.2" 4K HDMI Recording Monitor
PM / WhatsApp details
012-673 0686 | 012-5900766
🎥 1. Pro-Level Recording
Capture ProRes RAW / ProRes / DNx / H.265
Better quality + easier editing vs internal codecs
Ideal for color grading workflows
🌐 2. Cloud + Streaming (with Atomos Connect)
Camera-to-cloud (Frame.io etc.)
Live stream (YouTube, Twitch)
Proxy + master recording simultaneously
Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor with Accessory Kit
- Ninja Ultra 5.2" Touchscreen Display
- 2 x NP-F750 5200mAh L-Series Batteries
- Fast Charger, DC Power Supply
- Sun Hood, Travel Case, Screen Protector
- International Power Plug Kit
Add a recording monitor with all required accessories to your kit with this Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor with Accessory Kit put together by B&H. This kit includes the Ninja Ultra 5.2" 4K HDMI Recording Monitor, two 5200mAh L-series batteries, a fast charger, a DC power supply, an international power plug kit
Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
Key Specs
Display Size 5.2" / 13.2 cm
Native Resolution 1920 x 1080
Touchscreen Yes
HDR Support Yes, Hybrid Log Gamma
Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 OutputMedia/Memory Card Slot No
Video Format HDMI (8/10/16-Bit 4:2:2)
Show More
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50Phantom Power No
Built-In Battery No
Battery Type 1x L-Series
Power Consumption 30 W
Mounting 1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 FemaleDisplay
Panel Type IPS-Type LCD
Display Size 5.2" / 13.2 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 nits / cd/m2
Color Support 1.07 Billion Colors (8-Bit+FRC)
HDR Support Yes, Hybrid Log Gamma
Pixels Per Inch (ppi) 427 ppi
LUT Support HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 OutputHDCP Support No
Embedded Audio HDMI
Audio I/O 1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Headphone OutputBuilt-In Speaker No
Power I/O 1x Barrel Input
Other I/O 1x USB-C
Media/Memory Card Slot No
File System Support exFAT
Wi-Fi No
Bluetooth No
Mobile App Compatible Yes: iOS Only
App Name: AtomRemoteFormat Support
Video Format HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 SecondsEncoding Formats x
DNxHD
DNxHR
ProResMaximum Audio Tracks 8
Reference Input No
Phantom Power No
Power
Input Power 6.2 to 16.8 VDC
Built-In Battery No
Battery Type 1x L-Series
Power Consumption 30 W
Mounting
Mounting 1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 FemaleEnvironmental
Operating Temperature 104°F / 40°C
General
Material of Construction Aluminum, Plastic
Dimensions 5.9 x 3.6 x 1.2" / 151 x 91.5 x 31 mm
Weight 12.7 oz / 360 g
Packaging Info
Package Weight 1.715 lb
Box Dimensions (LxWxH) 7.5 x 6.1 x 3.3"
- Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
- Battery Eliminator
- USB-C PD to 2.1mm DC Power Cable
- Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year
- Atomos 5" Accessory Kit for Select 5" Monitors (Version II)
- Travel Case
- 2 x Atomos 5200mAh Battery for Atomos Monitors/Recorders
- Atomos 2A Fast Battery Charger 2 with Locking Cable
- DC Power Supply
- Atomos D-Tap to DC Barrel Coiled Cable
- USB-C to 2.1mm PD Power Cable (6.6')
- Atomos Sunhood for Ninja V, Shinobi, and Shinobi SDI (Black)
- Master Caddy III
- Screen Protector
- Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
