Comica Audio CVM-AX3 Overview
- Record microphones, instruments, or line-level signals into your DSLR with the Comica Audio CVM-AX3, a dual-channel mixer designed for use in video production, ENG, music videos, and more. Mount it to a camera or tripod then attach important accessories to its integrated cold shoe mounts. Dual gain control knobs adjust levels for the two built-in preamps, which can be fed by the XLR-1/4" combo jacks or 3.5mm mini-jack inputs. With selectable 48V phantom power and 3V plug-in power, the CVM-AX3 ensures compatibility with a variety of microphones such as traditional condensers, shotguns, and lavaliers.
- Thanks to 3.5mm main, aux, and headphone outputs, this mixer supports simultaneous routing to your camera's input, a backup recorder, and headphones for real-time monitoring. A mono/stereo switch allows the output signal to be optimized for your camera's input configuration. Powered by a single 9V battery, the CVM-AX3 offers up to 40 hours of battery life when phantom power is off, or up to six hours of operating time with phantom power engaged.
- 1/4" and 3/8" threaded ports for versatile camera/tripod mounting
Integrated cold shoe mounts for accessories such as a receiver/transmitter, light, microphone, or even a camera
- Dual XLR-1/4" combo inputs with selectable 48V phantom power accommodate dynamic/condenser mics, line-level signals, or electric instruments such as guitar, bass, or keyboard
- Three 3.5mm mini-jack inputs (two mono, one stereo) with selectable 3V plug-in power allow compatible hookup of lavalier microphones, mini shotgun mics, or line-level signals
- Two independent gain control knobs
- Selectable mono/stereo output mode
- Line, aux, and headphone 3.5mm outputs
- Powered via 9V battery
- Up to six hours of battery life with phantom power on, or up to 40 hours of battery life with phantom power off
- Dedicated on/off switch for battery conservation
- Durable aluminum alloy construction
- Includes 3.5mm audio cable for easy mixer-to-camera connectivity
- Includes cold shoe mount for expanded installation versatility

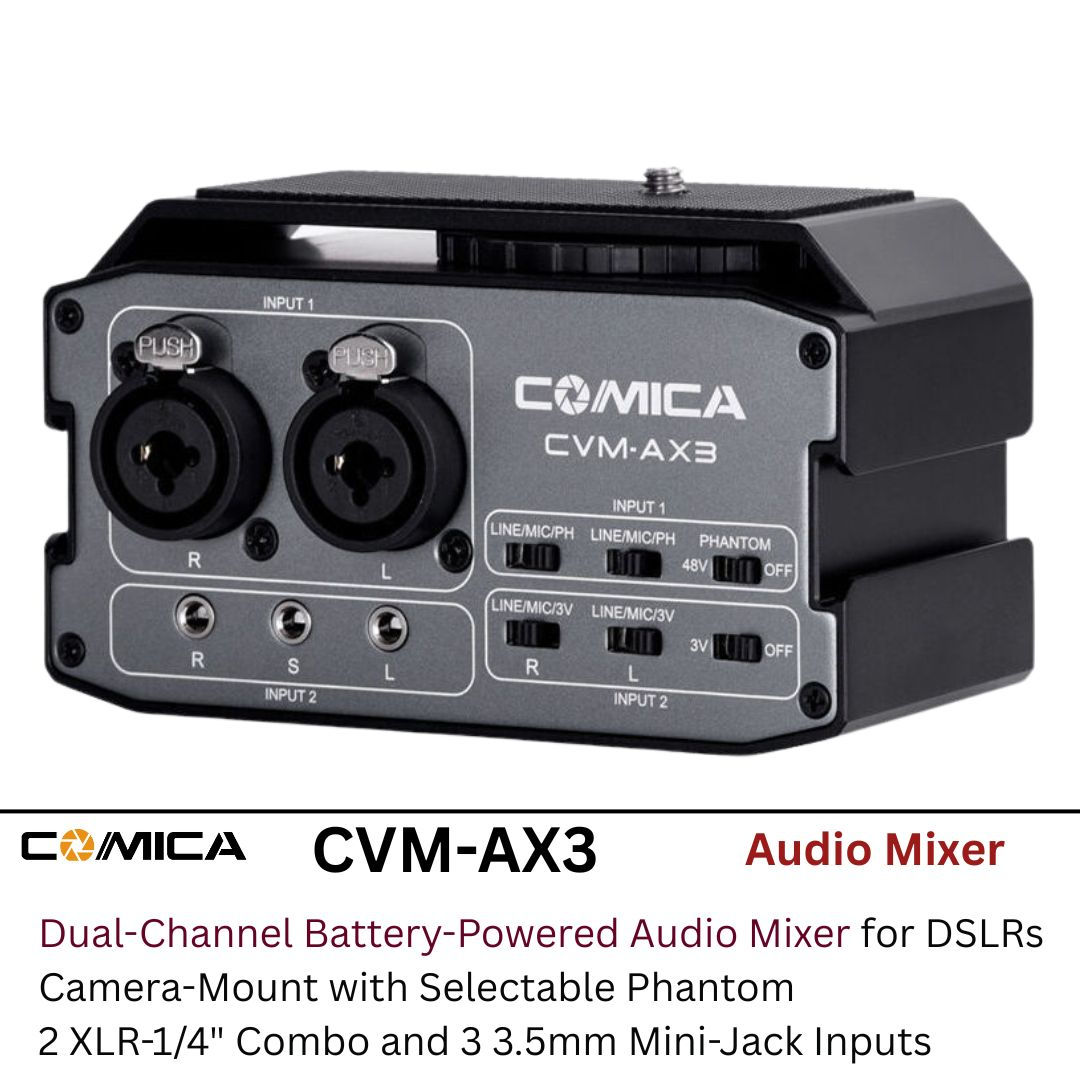

Comica Audio CVM-AX3 Dual-Channel Audio Mixer for DSLRs
Key Features
- Battery-Powered, Camera-Mount Mixer
- Selectable Phantom & Plug-In Power
- 2 x XLR-1/4" Combo Inputs
- 3 x 3.5mm Mini-Jack Inputs
- Dual Gain Control Knobs
- 3.5mm Main & Aux Outputs
- 3.5mm Headphone Output
- Mono/Stereo Output Switch
- Up to 40 Hours of Battery Life
- Built-In Cold Shoe Mounts
Record microphones, instruments, or line-level signals into your DSLR with the Comica Audio CVM-AX3, a dual-channel mixer designed for use in video production, ENG, music videos, and more. Mount it to a camera or tripod then attach important accessories to its integrated cold shoe mounts. Dual gain control knobs adjust levels for the two built-in preamps, which can be fed by the XLR-1/4" combo jacks or 3.5mm mini-jack inputs. With selectable 48V phantom power and 3V plug-in power, the CVM-AX3 ensures compatibility with a variety of microphones such as traditional condensers, shotguns, and lavaliers.
Thanks to 3.5mm main, aux, and headphone outputs, this mixer supports simultaneous routing to your camera's input, a backup recorder, and headphones for real-time monitoring. A mono/stereo switch allows the output signal to be optimized for your camera's input configuration. Powered by a single 9V battery, the CVM-AX3 offers up to 40 hours of battery life when phantom power is off, or up to six hours of operating time with phantom power engaged.
