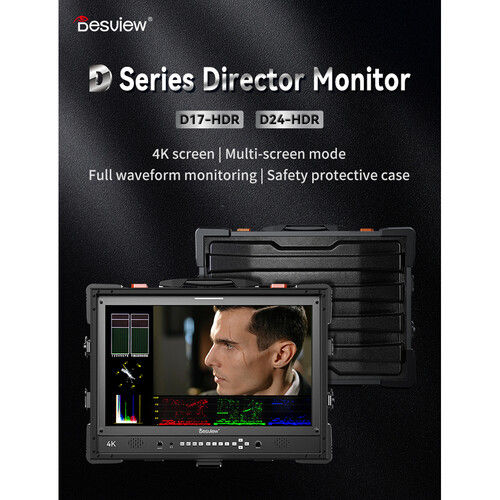

Desview D17-HDR 17.3" Director Monitor with Protector Case
Key Features
  • 17.3" 3840 x 2160 HDR Display
  • 3G-SDI & HDMI In/Out, USB Input
  • PIP, Dual, Triple & Quad Multiview
  • Horizontal & Vertical Display Modes
  • Protective Case
  • 400 cd/m² Brightness
  • Waveform Tools, 1000:1 Contrast
  • 3.5mm Headphone Jack, Speakers
The 17.3" Monitor with Protector Case from Desview features a durable safety case and a bright 4K HDR display for broadcast, field production, or cinema monitoring. The 17.3" display features a 3840 x 2160 resolution, 400 cd/m² brightness, and 1000:1 contrast ratio for crystal clear imagery. The monitor features 3G-SDI, HDMI, and USB inputs that support up to 4K60 video, and it can output via 3G-SDI and HDMI to additional destinations such as other monitors and switches.


Desview D17-HDR 17.3" Director Monitor with Protector Case

SKU: Desview D17-HDR
RM4,500.00Price
Quantity

  • Desview D17-HDR Specs

    Key Specs

    Display Size

    17.3" / 43.9 cm
    Native Resolution

    3840 x 2160
    Touchscreen

    No
    HDR Support

    Yes
    Video I/O

    2x BNC (3G-SDI) Input
    2x HDMI 2.0 Input
    1x USB-A Input
    2x BNC (3G-SDI) Output
    1x HDMI 2.0 Output

    Show More
    Media/Memory Card Slot

    No
    Video Format

    HDMI
    DCI 4K: 60
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576p
    576i
    480p
    SDI
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576i: 50
    480i: 60/59.94

    Show More
    Battery

    1x V-Mount on Fixed Plate

    Display

    Panel Type

    LCD
    Display Size

    17.3" / 43.9 cm
    Native Resolution

    3840 x 2160
    Aspect Ratio

    16:9
    Viewing Angle

    Horizontal: 178°
    Vertical: 178°
    Touchscreen

    No
    Maximum Brightness

    400 nits / cd/m2
    Contrast Ratio

    1000:1
    HDR Support

    Yes
    Color Gamut

    99.5% DCI-P3
    Image Controls

    Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra

    Inputs/Outputs

    Video I/O

    2x BNC (3G-SDI) Input
    2x HDMI 2.0 Input
    1x USB-A Input
    2x BNC (3G-SDI) Output
    1x HDMI 2.0 Output
    Embedded Audio

    SDI: 2-Channel
    HDMI: 2-Channel
    Audio I/O

    1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker

    Stereo
    Power I/O

    1x Barrel (24 VDC) Input
    Other I/O

    1x RJ45 (Tally) Input
    Media/Memory Card Slot

    No

    Wireless

    Wi-Fi

    No
    Bluetooth

    No
    Mobile App Compatible

    No

    Format Support

    Video Format

    HDMI
    DCI 4K: 60
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576p
    576i
    480p
    SDI
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576i: 50
    480i: 60/59.94

    Power

    Battery

    1x V-Mount on Fixed Plate

    Mounting

    VESA Mounting-Hole Pattern

    Unspecified VESA Pattern

    General

    Environmental Resistance

    No
    Operating Conditions

    12 to 92°F / -20 to 60°C
    Storage Conditions

    -22 to 158°F / -30 to 70°C
    Weight

    25.4 lb / 11.5 kg

    Packaging Info

    Package Weight

    27.1 lb
    Box Dimensions (LxWxH)

    22.3 x 17.8 x 11.6"
    • Desview 17.3" Director Monitor with Protector Case
    • Power Cable
    • Case
    • Limited 1-Year Manufacturer Warranty
