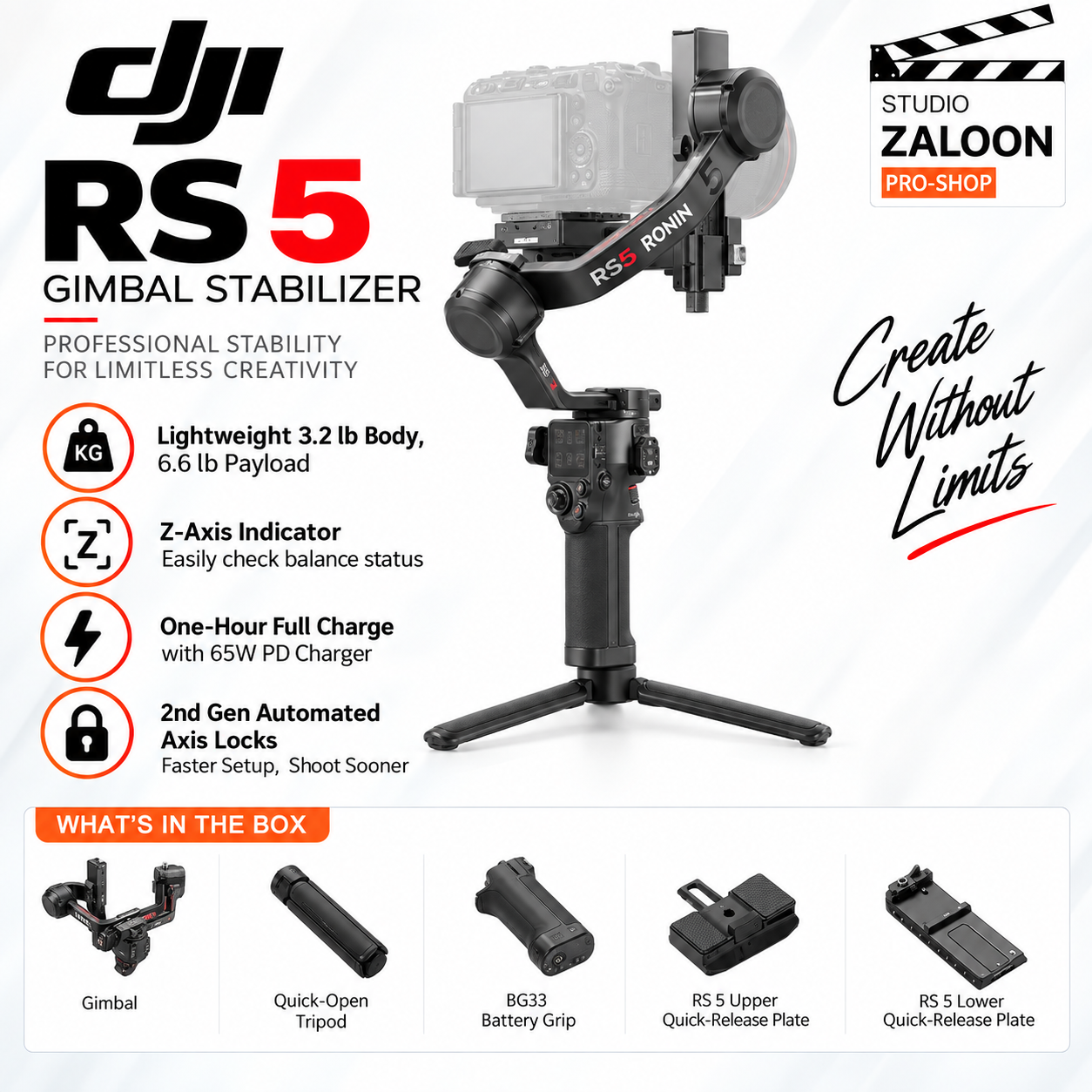

DJI RS 5 Gimbal Stabilizer

Key Features

• Lightweight 3.2 lb Body, 6.6 lb Payload
• Z-Axis Indicator
• One-Hour Full Charge with 65W PD Charger
• 2nd Gen Automated Axis Locks
• Separate AI Tracking and Framing Module
• Separate Electronic Control Handle
• OLED Touchscreen with Auto-Lock
• 3rd Gen Native Vertical Shooting
• Joystick or Bluetooth Mode Switching
• Teflon-Coated Axes, Enhanced Balancing

Get even smoother video footage, complete with a Z-axis (vertical) indicator, using the RS 5 Gimbal Stabilizer from DJI. This powerful yet lightweight gimbal features full charging in just one hour, a 15% increase in runtime, Teflon-enhanced balancing, and fine-tuning knobs. An electronic control handle and advanced AI framing and tracking modules are available separately.



DJI RS 5 Specs

Key Specs

Gimbal Design	Single Handgrip
Load Capacity	6.6 lb / 3 kg
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Camera Control	On Compatible Models (See Full Compatibility List)
Mobile App Compatible	Yes: Android & iOS
Display Type	Fixed Touchscreen OLED
Weight	2.630 lb / 1.193 kg
Transmission System	Bluetooth 5.1 2.4 GHz

Gimbal Design

Single Handgrip

Gimbal

Load Capacity	6.6 lb / 3 kg
Number of Axes	Three: Pitch (Tilt) / Roll / Yaw (Pan)
Rotation Range	Mechanical Range Yaw (Pan): 360°  Roll: 335° (-95 to 240°)  Pitch (Tilt): 326° (-112 to 214°)
Follow Speed	Pan/Tilt/Roll: 360°/s
Counterweight	Available, Not Included
Joystick Controller	No

Compatibility

Camera Control	On Compatible Models (See Full Compatibility List)
Camera Compatibility	Universal
Camera Mounting Screw	1x 1/4"-20 Male

Connectivity

Inputs/Outputs	1x USB-C (Power)
Wireless	2.4 GHz Radio/RF / Bluetooth 5.1
Mobile App Compatible	Yes: Android & iOS App Name: Ronin App

Battery

Battery Type	Built-In
Battery Runtime	14 Hours
Battery Charging Time	1 Hours

Power

Operating Voltage

7.2 VDC

General

Display Type	Fixed Touchscreen OLED
Operating Conditions	-4 to 113°F / -20 to 45°C
Materials	Aluminum Alloy
Accessory Mounting	1 x 1/4"-20 Female 2 x NATO Rail
Dimensions	16.5 x 8.8 x 7.6" / 418.8 x 223.2 x 192.2 mm 10.2 x 9.7 x 4.6" / 258.7 x 247.4 x 115.7 mm (Folded)
Weight	2.630 lb / 1.193 kg

Transmitter

Transmitter I/O	2 x NATO 2 x USB-C
Transmission System	Bluetooth 5.1 2.4 GHz

Packaging Info

Package Weight	4.59 lb
Box Dimensions (LxWxH)	11.7 x 10.2 x 3.7"

Items Included

• DJI RS 5 Gimbal Stabilizer
• Quick-Open Tripod
• Lens Support
• Screw Kit
• DJI Upper Quick Release Plate for RS 5/4 Pro/4
• DJI Lower Quick Release Plate for RS 5
• DJI RS BG33 Battery Grip
• USB-C Multicamera Control Cable (11.8")
• DJI Logo Sticker
