FeelWorld ATEM156 Overview
The FeelWorld ATEM156 can be used as a companion to switchers that don't have a multiview function, such as the Blackmagic ATEM Mini switcher. It allows you to view four DCI/UHD 4K HDMI signals in a quad split. Four HDMI loop outputs let you connect your four signals to the switcher. You can move any signal to any window in the quad split. A PiP image can also be displayed in each window. Alternatively, a dual view or single image can be displayed on the screen, also supporting Picture-in-Picture. Dual view can be set up in a vertical or horizontal split, and you can set one side of the split to be larger than the other.
The ATEM156 features a 15.6" IPS display with a 1920 x 1080 resolution, 250 cd/m² brightness, and 170° viewing angle. Software features, such as peaking and false color, additionally let you analyze each image. A 3.5mm stereo headphone jack on the front panel allows for audio monitoring.
Additional Features
DCI 4K24/UHD 4K30 HDMI input and loop output
Rec.709 color standard
Aluminum housing
Desktop bracket with three 1/4"-20 holes for various mounting options, including hang-mounted
Customizable F1 to F4 shortcut keys
V-mount battery plate
12 VDC power input
100 and 75mm VESA mounts
Monitoring Features
Screen splits: 1P, 2P LR, 2P TB, 2P PiP, or 4P
Peaking focus assist
False color
Anamorphic: x1.33, x1.5, x1.8, or x2.0
Rotate: 0/90/180/270°, H mirror, V mirror
Check field: red, green, blue, mono
Image freeze
Zoom
Pixel to pixel
Center marker
Safety marker: 80/85/90/93/96%, 4:3, 2.39:1, 2.35:1, 1.85:1
Line color: red, green, blue, white

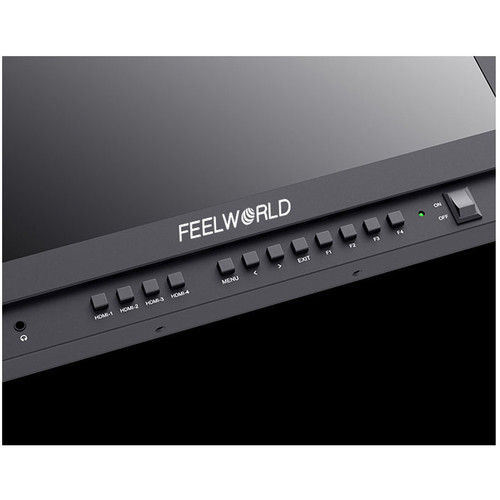

FeelWorld ATEM156 4K 15.6" Quad-Split Monitor with 4 x HDMI I/O for Switchers
Key Features
- Quad DCI 4K24/UHD 4K30 Input & Loop Out
- Multiview for Switchers like ATEM Mini
- Quad/Dual/Single View with PiP
- 1920 x 1080 Resolution, 800:1 Contrast
- 250 cd/m², 170° Viewing Angle
- Peaking, False Color, Anamorphic & More
- 3.5mm Stereo Headphone Jack
- V-Mount Battery Plate & 12 VDC Input
- 100 & 75mm VESA Mounts
- Aluminum Housing
The FeelWorld ATEM156 can be used as a companion to switchers that don't have a multiview function, such as the Blackmagic ATEM Mini switcher. It allows you to view four DCI/UHD 4K HDMI signals in a quad split. Four HDMI loop outputs let you connect your four signals to the switcher. You can move any signal to any window in the quad split. A PiP image can also be displayed in each window. Alternatively, a dual view or single image can be displayed on the screen, also supporting Picture-in-Picture. Dual view can be set up in a vertical or horizontal split, and you can set one side of the split to be larger than the other.
