HDMI FIBER CABLE V2.0 OUTDOOR CABLE 100METER WITH ROLLER
(”SOURCE” at roller , ”DISPLAY” at pull out direction)

Our armored HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Data Rate 6Gbps per channel, total 18Gbps with light weight, flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.

KA170R HDMI FIBER CABLE V2.0 OUTDOOR ARMORED CABLE 100METER WITH ROLLER

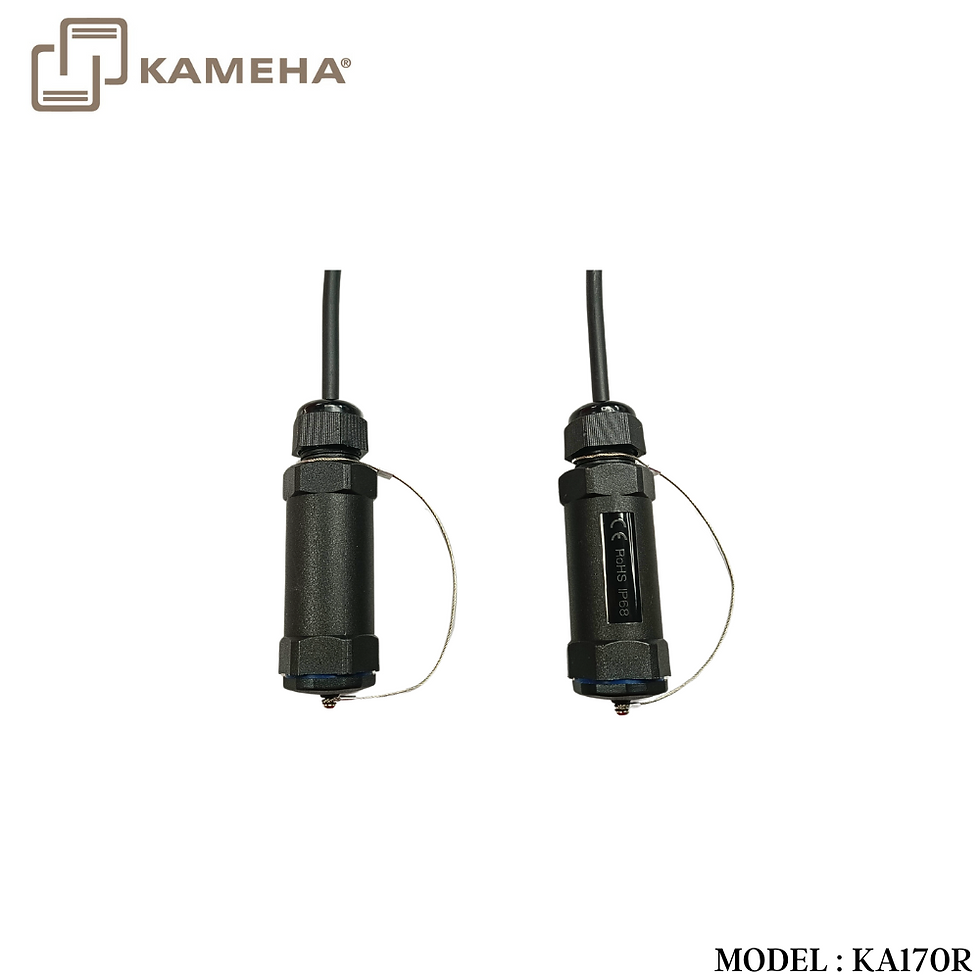

Name: KA170R HDMI FIBER CABLE V2.0 OUTDOOR ARMORED CABLE 100METER WITH ROLLER
SKU: KA170R
Price: 3268 MYR
Availability: InStock

SKU: KA170R

RM 3,268.00

Quantity

FEATURES

Up to 100m Maximum Length; (Custom Length Available)

Low Power Consumption: 250mW (max);

Plug and Play;

Compatible with HDMI 2.0 standard;

Support HDCP1.4/2.2;

Self-detecting function for EDID information;

No loss of signal – delivering crystal clear digital images instantly;

Supports computer resolutions to 1080P and 4K2K(60P);

Hybrid optical cable with fiber and copper wire; Crush Resistance: Long term100kg; Short term 200kg.
APPLICATIONS

Digital Signage

LED signboards in streets and in stadiums

Medical Imaging Equipment

Airplane On-board Video System

Home Theater

Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

TV Broadcast Station

Conference Room Video Equipment

Security systems

Specifications

Item	Description
Units	Transmitter (Source)	Receiver (Sink)
HDCP & DDC	HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
Video Bandwidth	6 Gbps/x3Channel (max)+ Clock.
Supported Resolution & Distance	PC: WUXGA 1920 x 1200 up to 100 meters, HDTV: 480p, 720p, 1080i and 1080p deep color, 4K(60P), 3DFull HD 1920 x 1080 up to 100 meters
O/E Converter	4 channel 850 nm VCSEL array	4 CH GaAs PD array
Connector Type	HDMI type A
Cable Type	Armored Hybrid type with OM3 fiber and copper wire
Cable Length	15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.
Cable Outer Diameter	5.8mm
Jacket Outer Material	TPU(Custom)
Cable Weight TBD	Cable Weight TBD
Cable Color TBD	Cable Color TBD
Differential Input	100 ohm (typ)
Power Consumption	250mW (max)
Power Supply	Non external power required

Parameter	Symbol	Min	Max	Unit
Power Supply Voltage	VCC	4.5	5.5	V
Operating Temperature	Top	0	50	°C
Storage Temperature	Ts	-40	70	°C
Relative Humidity	Hs	10	80	%RH

Parameter	Symbol	Min	Typical	Max	Unit
Power Supply Voltage	VCC	4.75	5.0	5.25	V
Operating Temperature	Top	-40		80	°C

PIN	Function	PIN	Function
1	T.M.D.S. Data 2+	11	TMDS Clock Shield
2	T.M.D.S. Data 2 Shield	12	TMDS Clock-
3	T.M.D.S. Data 2-	13	CEC
4	T.M.D.S. Data 1+	14	Utility
5	T.M.D.S. Data 1 Shield	15	SCL
6	T.M.D.S. Data 1-	16	SDA
7	T.M.D.S. Data 0+	17	DDC/CEC Ground
8	T.M.D.S. Data 2 Shield	18	+5V Power
9	T.M.D.S. Data 0-	19	Hot Plug Detect

Cable	Structure	Material/Model	Specifications
1.	Metal Tube	200CU Stainless steel	4.4±0.1
2.	To strengthen the unit	Dupont Kevlar	1670D*4
3.	Jacket	TPU	0D 5.8±0.2mm

Tensile (N)	Crush Resistance (N/100mm)	Bending Radius (mm)	Temperature (°C)
Long Term	Short Term	Long Term	Short Term	Dynamic	Static	-40~+80
400	800	1000	2000	10D	20D
