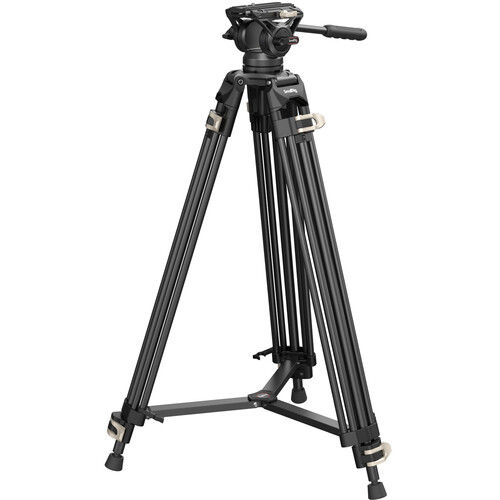

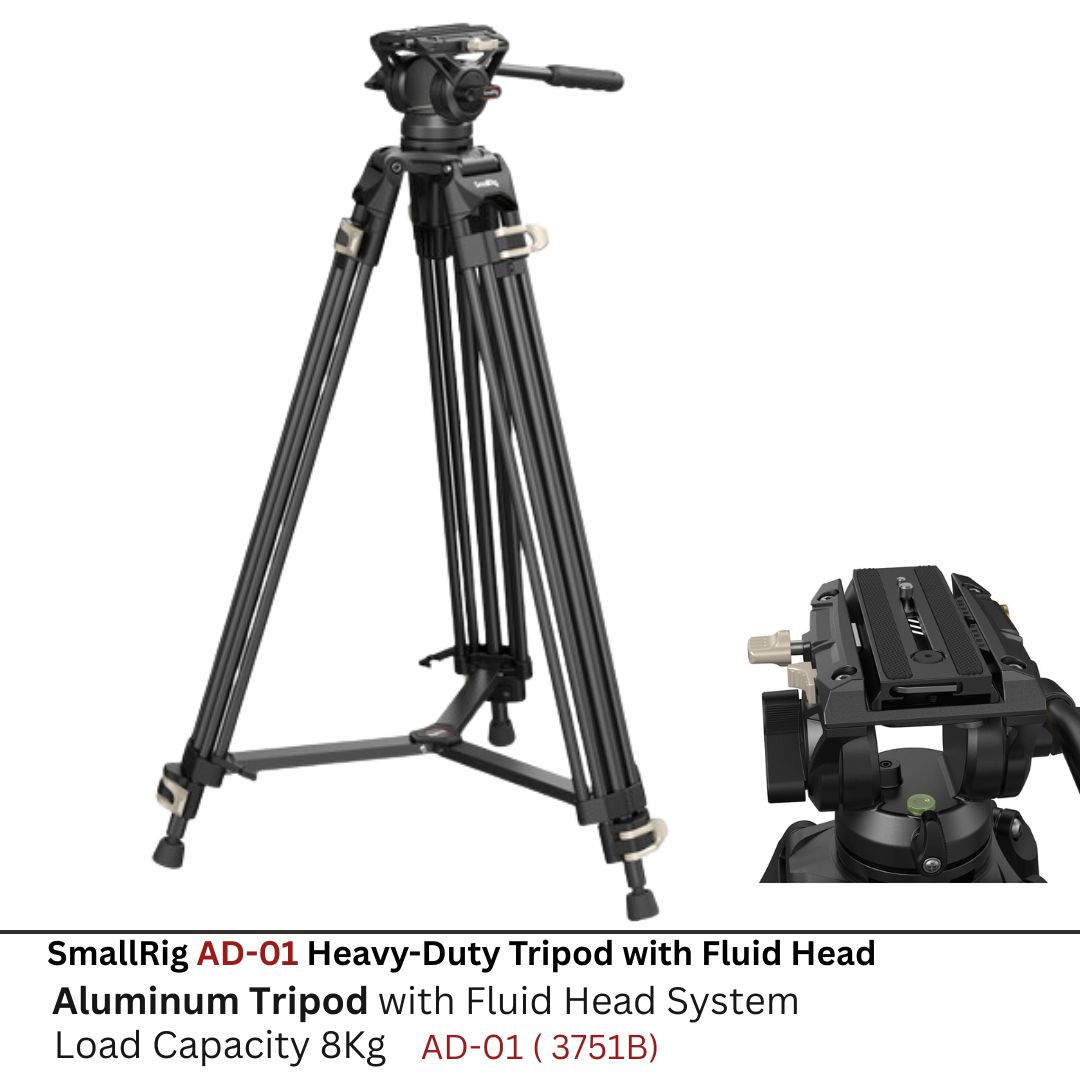

SmallRig AD-01 Heavy-Duty Tripod with Fluid Head
SmallRig AD-01 Overview
With a 17.6 lb load capacity at a weight of only 8.8 lb, the AD-01 Heavy-Duty Tripod with Fluid Head from SmallRig is a durable and portable support option for professional photographers, videographers, and vloggers. The three-stage tripod is constructed with durable, lightweight aluminum and features an adjustable height range of 33 to 74" and easy flip locks. It folds down to 35" in length for simplified transport in the included carrying bag.
The fluid head allows you to use the included Manfrotto-style quick release plate or the original DJI RS 2 quick release plate with the flip of a simple switch. The 75mm half ball head can pan 360° and tilt +90/-75°, and the quick release plate features 1/4"-20 and 3/8"-16 camera screws to accommodate all camera types. Other features include a bubble level, 1/4"-20 and 3/8"-16 accessory threads, and a fixed pan bar. A carry bag with a shoulder strap is included to store and transport the system.
Key Features
Lightweight aluminum tripod and fluid head system
Weighs only 8.8 lb
Maximum working height adjustment range of 33 to 74"; folded length of 35"
Manfrotto-style quick release plate with 1/4"-20 and 3/8"-16 camera mounting screws
Switch on head changes mount configuration to accommodate DJI RS 2 quick release plate
17.6 lb maximum load
1/4"-20 and 3/8"-16 threads on head and legs to mount accessories
75mm bowl base
360° panning, +90/-75° tilting
Fixed pan bar
Bubble level
Carry bag included

SmallRig AD-01 Heavy-Duty Tripod with Fluid Head

SKU: SmallRig AD 013571
RM680.00Price

  • Key Features

    • Aluminum Tripod with Fluid Head System
    • 17.6 lb Load Capacity, Weighs 8.8 lb
    • 33 to 73" Height Adjustment, 35" Folded
    • Standard & DJI RS 2 Quick Release Modes
    • 75mm Ball Head, Pan & Friction Knobs
    • Bubble Level, Manfrotto QR Plate
    • 1/4"-20 & 3/8"-16 Camera Screws
    • 1/4"-20 & 3/8"-16 Accessory Threads
    • Carry Bag with Shoulder Strap

    With a 17.6 lb load capacity at a weight of only 8.8 lb, the AD-01 Heavy-Duty Tripod with Fluid Head from SmallRig is a durable and portable support option for professional photographers, videographers, and vloggers. The three-stage tripod is constructed with durable, lightweight aluminum and features an adjustable height

  • SmallRig AD-01 Specs

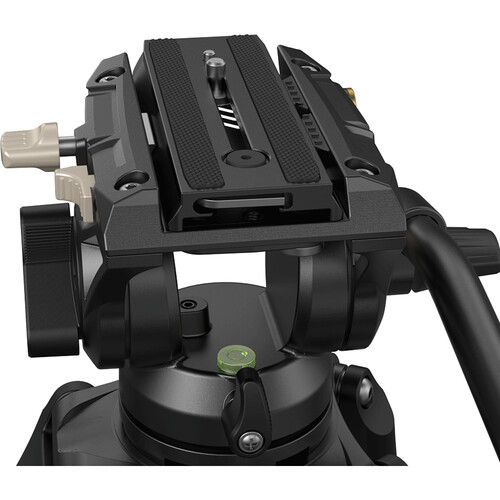

    Camera Plate

    Camera Plate Features Quick Release
    Camera Plate Type 501 Type
    Camera Mounting Screw 1 x 1/4"-20 Male
    1 x 3/8"-16 Male
    Safety Lock Yes

    Head

    Base Mount 75 mm Half Ball
    Counter Balance None
    Pan Handle Fittings 1 x Fixed
    Bubble Level 1
    Accessory Mounting 1/4"-20 Female Thread
    3/8"-16 Female Thread
    Base Diameter 3.0" / 75 mm

    Pan & Tilt

    Drag Type Fluid

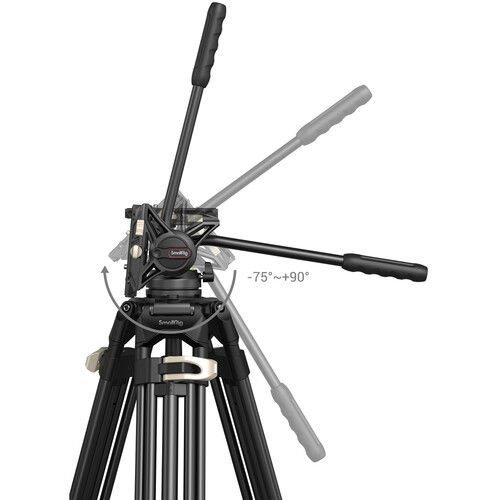

    Vertical Tilt +90° to -75°
    Panning Range 360°
    Independent Pan Lock Yes
    Independent Tilt Lock Yes

    General

    Load Capacity 17.6 lb / 8 kg

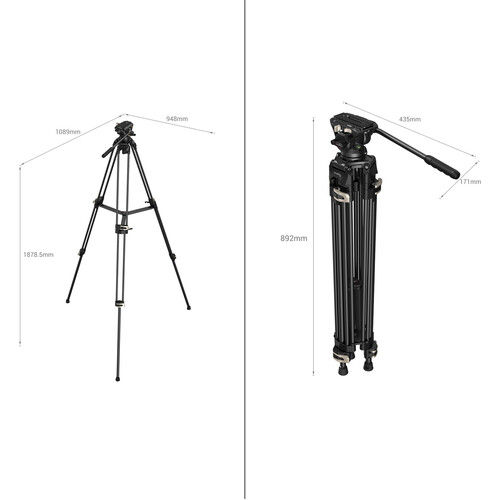

    Maximum Working Height 73.2" / 186 cm
    Minimum Working Height 33.5" / 85 cm
    Closed Length 35" / 88.9 cm
    Materials Aluminum
    Weight 8.8 lb / 4 kg

    Legs

    Leg Lock Type Flip Lock
    Independent Leg Spread Yes
    Leg Sections 3
    Bubble Level None
    Feet Features Rubber
    Spreader Mid-Level (Included)

    Center Column

    Center Column Features Leveling, Removable

    Packaging Info

    Package Weight 10.84 lb
    Box Dimensions (LxWxH) 36.8 x 9 x 6.8"
