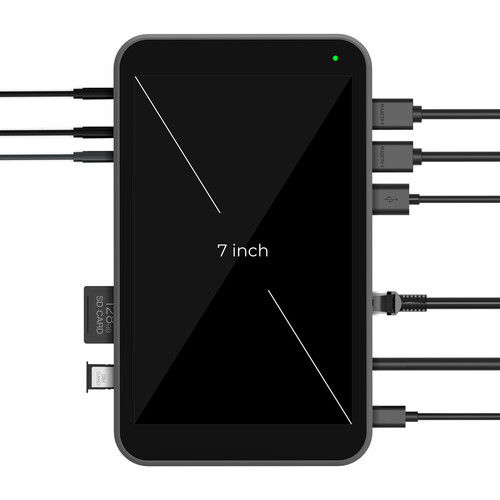

YoloLiv Instream Vertical Live Streaming Encoder and Monitor
RM 3,450

PM / WhatsApp us now for best price & details
012-673 0686 | 012-590 0766
03-2110 1188

instream supports MULTIPLE CAMERAS
2× HDMI inputs (2 cameras)
+ 1 USB camera
Total: up to 3 camera sources
Switch between cameras
Use picture-in-picture
Show product + face at same time
Built specifically for TikTok LIVE
Native vertical (portrait) streaming
Designed for TikTok & Instagram
Works like a “fake phone camera” input (very important trick)
That’s why many people use it for:
TikTok LIVE selling
Product showcase streams
Influencer conten

YoloLiv Instream Vertical Live Streaming Encoder and Monitor

Name: YoloLiv Instream Vertical Live Streaming Encoder and Monitor
SKU: YoloLiv Instream
Price: 3450 MYR
Availability: InStock

SKU: YoloLiv Instream

RM 5,099.00

RM 3,450.00

Quantity

Key Features
- Encoder, Monitor, Recorder, Switcher
- Intuitive 7" Touchscreen LCD Display
- Stream via Ethernet, Wi-Fi, 4G LTE
- Stream at up to 1080p60, Supports H.264
- 2 x HDMI, 1 x USB In, 1 x SD Card Input
- Supports H.264/MP4 up to 1080p Video
- Built-In Chroma Key
- Lower-Thirds/Graphic Overlays/Countdown
- Picture-in-Picture & Transition Effects
- Add Logos/Comments to the Stream
Add multi-camera streaming to your Instagram, TikTok, and other livestream services with the YoloBox Instream Vertical Live Streaming Encoder and Monitor from YoloLiv. The Instream features native integration with Instagram and TikTok, and it is designed to allow you to use external cameras when streaming

YoloLiv Instream Specs

Key Specs

IP Video	H.264: 720 x 480 to 1920 x 1080 Encoding
IP Audio	AAC-LC: Encoding
Simultaneous Streams	1 Streams
Video I/O	2x HDMI Input 1x HDMI Output
Embedded Audio	HDMI: 2-Channel
Recording Media	1 x SD (Unspecified Type)
Recording Modes	1920 x 1080p up to 60 fps
Display	LCD

IP Encoding/Decoding

IP Video	H.264: 720 x 480 to 1920 x 1080 Encoding
IP Audio	AAC-LC: Encoding
Transport Protocols	RTMP, RTMPS
Simultaneous Streams	1 Streams
Compatible Services	Instagram, TikToK

Wireless

Wi-Fi	Yes
Bluetooth	No
Cellular Support	4G LTE via Nano-SIM
SIM Card Slots	1x Nano SIM

Interfaces

Video I/O	2x HDMI Input 1x HDMI Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Analog Input 1x 1/8" / 3.5 mm TRS Mono Analog Input 1x 1/8" / 3.5 mm TRS Stereo Analog Output
Other I/O	1x RJ45 (10/100 Ethernet) Input/Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Input
Embedded Audio	HDMI: 2-Channel

Internal Recording

Recording Media	1 x SD (Unspecified Type)
Recording Modes	1920 x 1080p up to 60 fps

Power

Built-In Battery	10,000 mAh
Power I/O	1x USB-C (5 to 12 VDC at 1.5 A) Input

Environmental

Operating Temperature	14 to 104°F / -10 to 40°C
Storage Temperature	41 to 104°F / 5 to 40°C

General

Display	LCD
Dimensions	7.4 x 4.4 x 1" / 188 x 112.5 x 25 mm
Weight	21.2 oz / 600 g

Packaging Info

Package Weight	2.64 lb
Box Dimensions (LxWxH)	9.6 x 6.25 x 3.25"

YoloLiv Instream Vertical Live Streaming Encoder and Monitor

2 x USB Type-C Cable

Shoe Mount

SIM Card Eject Pin

Limited 1-Year Manufacturer Warranty
